I2S DAC output for the player (ESP-IDF i2s_std driver, master, Philips format, 32-bit slots). More...

#include "audio_player/sink.h"

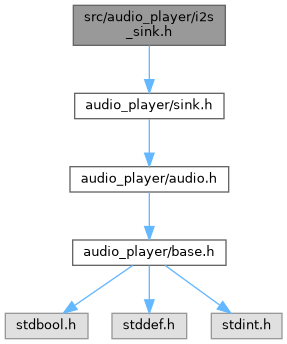

Include dependency graph for i2s_sink.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	audio_i2s_config_t

Macros
#define	AUDIO_I2S_CONFIG_DEFAULT()

Functions
audio_sink_t *	audio_i2s_sink_create (const audio_i2s_config_t *cfg)
	Create the sink.

void	audio_i2s_sink_destroy (audio_sink_t *sink)
	Stops the feeder task and frees the sink.

Detailed Description

I2S DAC output for the player (ESP-IDF i2s_std driver, master, Philips format, 32-bit slots).

Works with DACs that take plain I2S without a control bus: PCM5100/5101/5102A, PCM5122 in hardware mode, UDA1334A, ES9023, CS4344 (with MCLK), MAX98357A and similar.

The DAC follows the source rate (8 kHz .. 192 kHz, capped by max_sample_rate); other rates are resampled by the player to the nearest rate of the same family.
Q31 samples go into 32-bit slots unchanged: 16, 24 and 32-bit sources reach the DAC bit-exact while the DSP is bypassed (SINK_CAP_BITPERFECT).
write() copies into a FIFO (PSRAM when available, fifo_ms long) that a feeder task moves into the I2S DMA, so file opens and tag reads at track boundaries never cause dropouts.
pause() lets the DMA play out, mutes (mute_gpio) and stops the clocks; resume starts the clocks, waits for the DAC to lock on them and only then unmutes. Rate changes between tracks follow the same order: no pops by design.
DoP: with accept_dop the DSD files of the player (DSF/DFF as DoP at 176.4 kHz) go to the DAC as they are, and every pause or flush sends DoP silence instead of PCM zeros so the DAC stays in DSD mode. Only for DACs that detect DoP (ES9018/ES9038, AK4490 boards...).
No hardware volume: the player applies its software volume with TPDF dither.

Macro Definition Documentation

◆ AUDIO_I2S_CONFIG_DEFAULT

#define AUDIO_I2S_CONFIG_DEFAULT ( )

Value:

    {                                                                                                          \
        .port = 0, .bck_gpio = -1, .ws_gpio = -1, .dout_gpio = -1, .mclk_gpio = -1, .mclk_multiple = 0,       \
        .mute_gpio = -1, .mute_active_level = 0, .amp_enable_gpio = -1, .max_sample_rate = 0,                  \
        .accept_dop = false, .fifo_ms = 200, .feeder_core = 1, .feeder_priority = 19, .dac_name = NULL,       \
    }

Function Documentation

◆ audio_i2s_sink_create()

audio_sink_t * audio_i2s_sink_create ( const audio_i2s_config_t * cfg )

Create the sink.

The I2S channel is allocated at the first open() and released by close(). NULL when the pins are not set or memory runs out.

◆ audio_i2s_sink_destroy()

void audio_i2s_sink_destroy ( audio_sink_t * sink )

Stops the feeder task and frees the sink.

Call only after the player released it (player_cmd_set_sink() to another sink, or audio_player_stop()).
