Audio decoders behind one interface. More...

#include "audio_player/audio.h"
#include "audio_player/stream.h"

Include dependency graph for decoder.h:

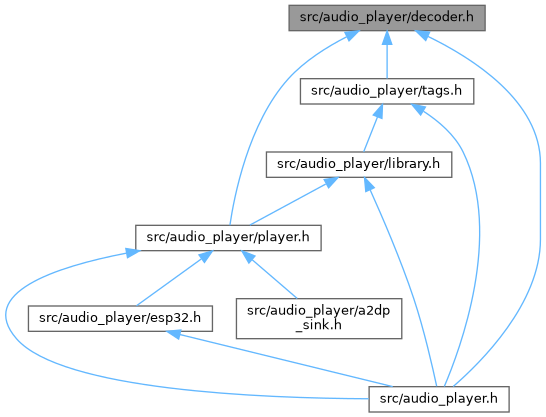

This graph shows which files directly or indirectly include this file:

Data Structures
struct	decoder_info_t

struct	decoder_backend_t
	Backend interface (for implementers of src/decoders/*.c). More...

Typedefs
typedef struct decoder	decoder_t

Enumerations
enum	codec_id_t { CODEC_UNKNOWN = 0 , CODEC_WAV , CODEC_AIFF , CODEC_FLAC , CODEC_MP3 , CODEC_VORBIS , CODEC_OPUS , CODEC_AAC , CODEC_ALAC , CODEC_WAVPACK , CODEC_APE , CODEC_DSF , CODEC_DFF , CODEC_COUNT }

Functions
const char *	codec_name (codec_id_t id)
	"FLAC", "MP3", ...

bool	codec_is_lossless (codec_id_t id)

codec_id_t	codec_from_extension (const char *ext)
	Extension -> codec guess ("flac" -> CODEC_FLAC). Case-insensitive, no dot.

bool	codec_is_audio_extension (const char *ext)
	True if the file extension is one we list in the browser (supported or planned).

codec_id_t	decoder_probe (core_stream_t s, const char path_hint)
	Probe the stream (position is restored). path_hint may be NULL.

decoder_t *	decoder_open (core_stream_t s, const char path_hint, decoder_info_t info, int err)
	Open a decoder.

int32_t	decoder_read (decoder_t d, int32_t out, uint32_t max_frames)
	Decode up to max_frames frames into out (interleaved Q31, info.fmt.channels).

int	decoder_seek (decoder_t *d, uint64_t frame)
	Seek to an absolute frame (after trimming). Returns CORE_OK or error.

uint64_t	decoder_tell (decoder_t *d)
	current frame

const decoder_info_t *	decoder_info (const decoder_t *d)

void	decoder_close (decoder_t *d)

Detailed Description

Audio decoders behind one interface.

Probe by magic bytes first, extension second.

Backends (v0.1): WAV/RF64/W64? (WAV + RF64), AIFF/AIFC(none/sowt), FLAC (dr_flac), MP3 (minimp3, with Xing/LAME/Info gapless trimming), Ogg Vorbis (stb_vorbis), DSF -> DoP64. Later: Opus, ALAC/M4A, AAC (esp_audio_codec on device), WavPack, APE.

Typedef Documentation

◆ decoder_t

typedef struct decoder decoder_t

Enumeration Type Documentation

◆ codec_id_t

enum codec_id_t

Enumerator
CODEC_UNKNOWN
CODEC_WAV
CODEC_AIFF
CODEC_FLAC
CODEC_MP3
CODEC_VORBIS
CODEC_OPUS
CODEC_AAC
CODEC_ALAC
CODEC_WAVPACK
CODEC_APE
CODEC_DSF
CODEC_DFF
CODEC_COUNT

Function Documentation

◆ codec_from_extension()

codec_id_t codec_from_extension ( const char * ext )

Extension -> codec guess ("flac" -> CODEC_FLAC). Case-insensitive, no dot.

◆ codec_is_audio_extension()

bool codec_is_audio_extension ( const char * ext )

True if the file extension is one we list in the browser (supported or planned).

◆ codec_is_lossless()

bool codec_is_lossless ( codec_id_t id )

◆ codec_name()

const char * codec_name ( codec_id_t id )

"FLAC", "MP3", ...

◆ decoder_close()

void decoder_close ( decoder_t * d )

◆ decoder_info()

const decoder_info_t * decoder_info ( const decoder_t * d )

◆ decoder_open()

decoder_t * decoder_open	(	core_stream_t *	s,
		const char *	path_hint,
		decoder_info_t *	info,
		int *	err
	)

Open a decoder.

Takes ownership of the stream in all cases (closes it on failure). Returns NULL on failure; *err (optional) receives the reason.

◆ decoder_probe()

codec_id_t decoder_probe	(	core_stream_t *	s,
		const char *	path_hint
	)

Probe the stream (position is restored). path_hint may be NULL.

◆ decoder_read()

int32_t decoder_read	(	decoder_t *	d,
		int32_t *	out,
		uint32_t	max_frames
	)

Decode up to max_frames frames into out (interleaved Q31, info.fmt.channels).

Returns frames written (>0), 0 at end of stream, or a negative core_err_t. Gapless trimming (encoder delay/padding) is applied here.

◆ decoder_seek()

int decoder_seek	(	decoder_t *	d,
		uint64_t	frame
	)

Seek to an absolute frame (after trimming). Returns CORE_OK or error.

◆ decoder_tell()

uint64_t decoder_tell ( decoder_t * d )

current frame
